Loaded 4X4 Standard+ Suspension Upgrade Kit - Dynamic Tune: MITSUBISHI PAJERO SPORT

Upgrading your 4X4's suspension is one of the most significant positive changes you can make to the way your 4X4 drives, handles, and performs both on and off-road.

There's no question that the benefits are immense, from both a driving and safety perspective.

Get the right gear fitted, and you'll also transform the way you 4X4 rides.

Our suspension systems are a highly reliable 'set and forget' option. The design of our shocks is rock-solid and well-proven and we've stayed right away from introducing unnecessary complications and failure points, like external adjusters and remote reservoirs.

Tuning is specific to each kit and we've dialled in just the right amount of compliance and body control.

Each kit is backed by a 3-year unlimited-kilometre warranty.

• Tuned, developed and tested in Australia.
• Robust Twin-Tube Gas Design (rebuildable) with Extra Strong 2.5mm outer wall for maximum strength in the toughest conditions.
• Reinforced mounts for ultimate reliability.

• Adjustable coil seats on all struts.
• 36mm High Flow Monotube Piston with multi-stage, velocity-sensitive valving that provides greater control, improved ride quality, and cooler operating temperatures at all speeds.
• Multi-Stage foot valve that adjusts to driving conditions.
• Heavy-duty 18mm diameter Hardened Chrome Piston Rod that is stronger for off-road driving and resists sideways deflection at full droop.
• Nitrogen gas charged to resist fade by reducing oil cavitation.
• Premium quality triple lip wiper oil seal that keeps contaminants out and reduces the likelihood of hydraulic leaks.
• High Durability Rubber Bushes are used for improved flexibility and longer life.
• Exclusive High Temperature, Foam Resistant Hydraulic Oil that resists shock fade and works through a broader temperature range than lesser oils.
• We only use very high-quality coil springs, leaf packs, and componentry in our kits.
• 3-year unlimited-kilometre warranty.

Click here for more information on Loaded 4X4 suspension.

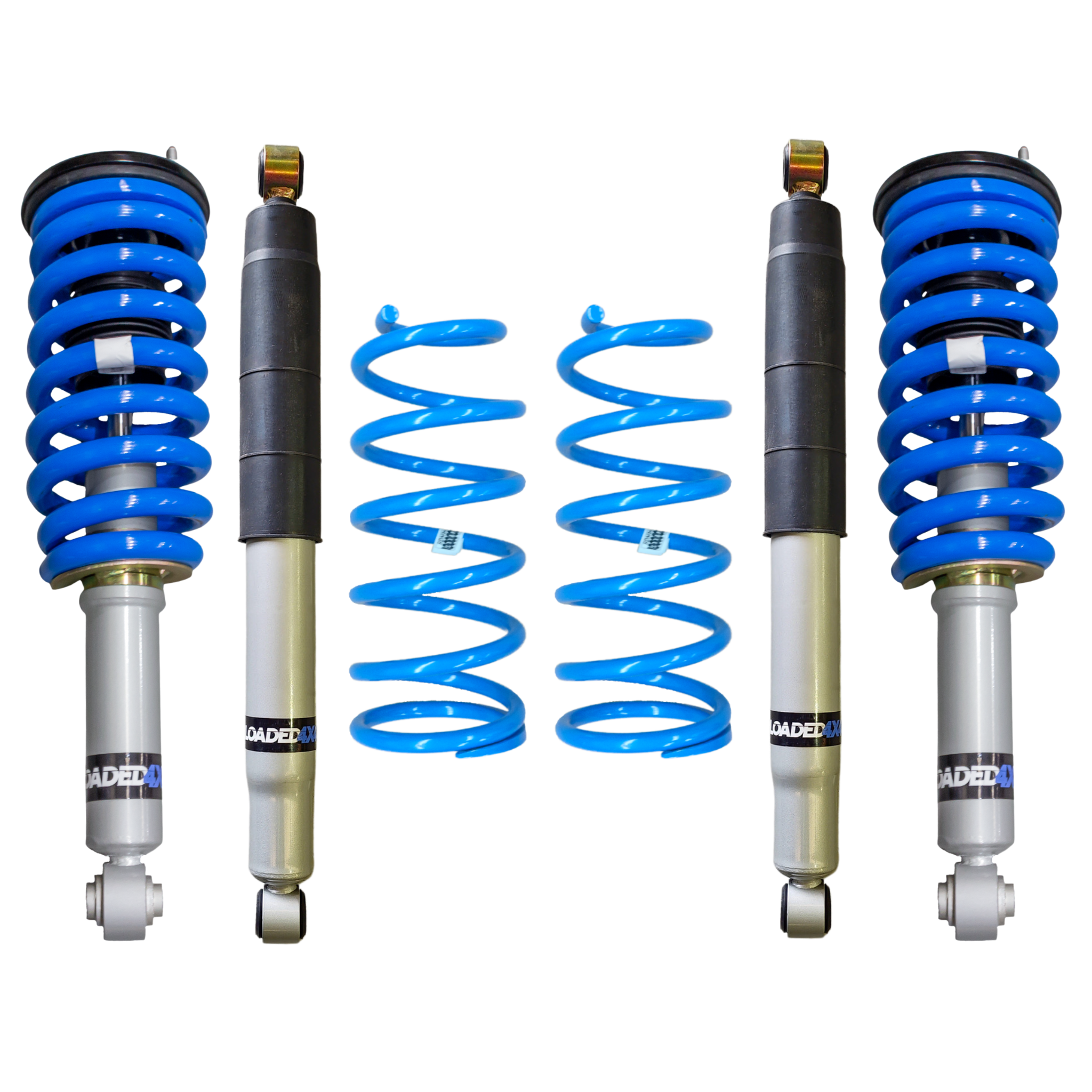

• 2 x Front struts, strut mounts and coil springs (pre-assembled)
• 1 x Front Shortened Bump Stop Kit
• 2 x Rear Shock Absorbers
• 2 x Rear Coil Springs

Use the selection boxes up near the top of this listing to let us know about your vehicle so that we can supply the springs best suited to your set up and use.

If you're looking for more "plush" in your 4X4's ride, without it being turned into a wallowing tank, then our Dynamic Tune shocks are frankly, bloody awesome.

Our Dynamic Tune valving offers superb high-speed wheel and body control and plenty of initial compliance, which means ride and handling are improved dramatically, making it the perfect 'set and forget' suspension option for your 4X4.

Click here for more information on Loaded 4X4 suspension.

We have a growing list of fitting outlets that we are comfortable dealing with and you can select to have your kit fitted by one of these outlets when completing the fitment details section of the ordering process.

If you select a fitting outlet when purchasing your kit, we'll ship to that outlet rather than the address you provide when making the purchase, and the outlet will contact you to arrange fitting and confirm the cost of fitting as soon as your kit has been delivered to them. We'll manage this process for you, all you have to do is wait patiently for their call. Payment for fitting is made directly to the fitting outlet and is not added to the cost of your kit when purchasing in this store.

As a rule of thumb, expect fittings costs (including a wheel alignment) to be around the following:

Levelling Kit: $350 to $450

Lift Kit (Coil rear end): $550 to $650 - if fitting airbags at the same time add an additional $50 to $100.

Lift Kit (Leaf rear end): $600 to $700

The fitting outlets that we are currently working with can be found by clicking on the 'Fitting' drop down menu section of the 'Confirm Fitment Details' box above.

We use Lovells and Dobinson coil springs, depending on availability. The Lovell's coils are the blue coils pictured in the product images and Dobinson coils are a lighter blue colour.

Both brands are Aussie made and are high-quality products.

There are some setups where we'll use a black Lovell's coil spring (mostly Tritons fitted with steel bars and winches).

No two vehicles are the same, and the accessories you choose to fit, that make your 4X4 unique, all have a bearing on which springs are chosen for your lift kit, and how much lift they'll ultimately achieve. All of our lift kits will result in a lift that's around the figure stated in the title. It's not an exact science, and even manufacturers, for example Mitsubishi, quote stock suspension heights noting an allowable tolerance of +/-20mm. All new lift kits will settle over time, and, depending on the type of driving and/or load carrying, can take a few thousand kilometres to reach their settled height.

Shipping is FREE with the exception of some more remote areas, for which a $40.00 charge will be added at check out, to partly compensate for the additional shipping expense involved.

Lift kits with leaf springs can only be shipped to a business address or the nearest freight depot. Levelling kits and lift kits with rear coil springs can be shipped to residential addresses.

There is a lead time of around 14 days on our suspension kits, in addition to delivery times, which will vary depending on where we are shipping to for you.

All Loaded 4X4 suspension kits are covered by a 3-year unlimited-kilometre warranty. Check out our warranty information page for more information.
